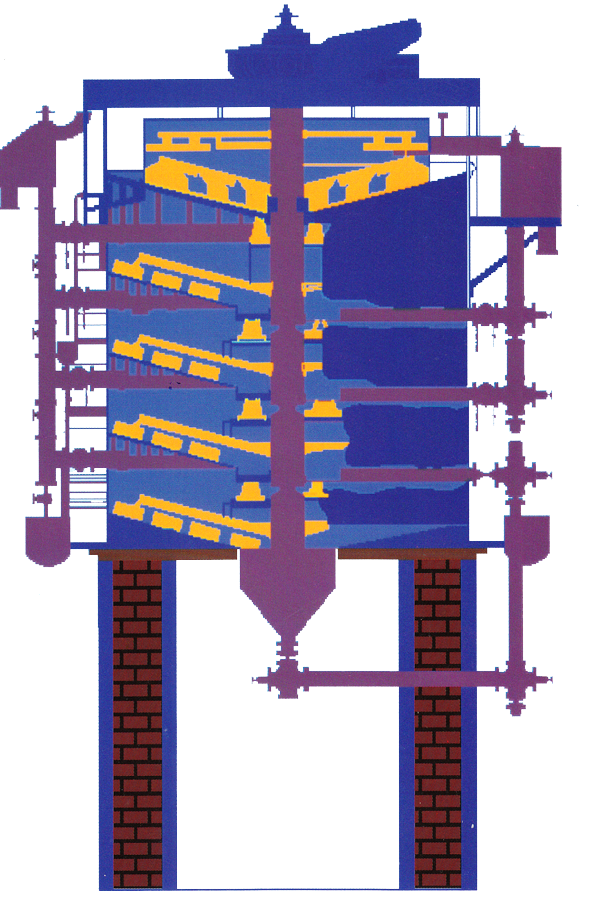

Can Juicer Clarifier :

The new improved design of Cane Juice Clarifier settles juice at a faster rate and has sufficient volume to handle refractory juices, achieving maximum juice clarity and optimum density of underflow. It’s performance don’t vary much with fluctuating juice flow. The Drive Head is ruggedly designed and is maintenance free.

Size Manufactured By Us :

The Clarifier is manufactured in different sizes to suit specific requirement from 10’ (3048mm) to 42’ (12801mm) diameter. Capacity ranging from 450 HL to 7800 HL.

SIZES & CAPACITY DETAIL FOR 4 COMPARTMENT SYSTEMS:

   DIAMETER    CAPACITY    DIAMETER    CAPACITY
   10’    450 HL    22’    2210 HL
   11’    550 HL    24’    2630 HL
   12’    650 HL    26’    3080 HL
   13’    770 HL    28’    3570 HL
   14’    890 HL    30’    4100 HL
   15’    1030 HL    32’    4670 HL
   16’    1170 HL    34’    5260 HL
   17’    1320 HL    36’    5900 HL
   18’    1480 HL    38’    6400 HL
   19’    1650 HL    40’    7100 HL
   20’    1820 HL    42’    7800 HL

SALIENT FEATURES :

• Each chamber is 1524mm (5 feet) high convenient for cleaning and maintenance.
• Improved design for clear and brighter juice with facility for operating Clarifier partially full to accommodate plant capacity at all levels of crushing.
• Effective mud seal arrangement to prevent mixing of settled mud clear juice.
• Complete auto dosing system for flocculants.
• Provision for variable speed possible.
• The Clarifier can be supplied with 5, 4 or 3 chambers.
• The Juice and Mud withdrawal can be provided at more than one chamber.
• It consumes laser quantity of flocculent as compare to other clarification system.

Flash Tank

Clear Juice Column

Top Canopy

Intermediate Trayplates

External Pipeline

Drive Of Clifer

Juice Box

Mud Box

Pumps
